Amarillo Composite Driveshaft CTD-CF73-425L
Amarillo Composite Driveshaft CTD-CF73-425L

Amarillo Composite Driveshaft CTD-CF73-425L

CTD-CF73-425L

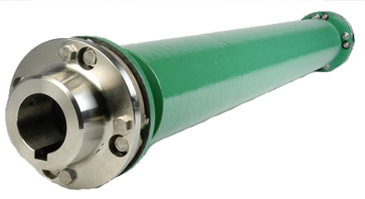

Composite drive shaft assembly. This driveshaft is assembled with 316 stainless steel hardware and hubs.
The Max HP at a 2.0 Service Factor is 225 at 1,800 RPM and 188 at 1,500 RPM
The max DBSE (in.) is 122 at 1,800 RPM and 133 at 1,500 RPM.
Custom bores are included with purchase in the standard range of bore sizes. Larger bores are available at additional cost.

Online Sale Price

$4,320.00 Each

  • SpecificationsMaintenance Ma...
  • Online Request FormRequest Form
  • Printable VersionPrintable Version
  • Email This Page

Dimensional Data (All dimensions shown in inches (mm))
Model # CTD-CF73-425L
# Bolts Per
Flex Disc		 8
Flex Disc Color Blue
Flex Disc OD 7.30 (185)
Max Bore
Standard Hub		 3.375 (90)
Max Bore
Large Hub		 3.625 (95)
Minimum Bore 1.81 (46)
Dim "A" 4.25 (108)
Dim "B" 7.67 (195)
Dim "C" 2.75 (70)
Engineering Data (All dimensions shown in inches (mm))
Model # CTD-CF73-425L
# Bolts Per Flex Disc 8
Flex Element Color Blue
HP Rating @1800 rpm w/ 2.0 SF 225 (168 kW)
Continuous Torque, 2.0 SF (in-lb) 7800 (881 Nm)
Peak Overload Torque (in-lb) 31200 (3526 Nm)
Max DBSE @ 1785 rpm 122 (3090)
Max DBSE @ 1485 rpm 133 (3380)
Max DBSE @ 1185 rpm 149 (3790)
Weight @ Minimum Bore and Max. DBSE @ 1785 (lb.) 54
Assembly WR2 at Minimum Bore & Max DBSE @ 1785 rpm (lb-in2 ) 281
